特尔玛适用于Powermax 105®

产品中心 > 特尔玛 > 特尔玛适用于Powermax 105®

产品详细信息:

产品描述：

本系列产品适用于海宝HYPERTHERM Powermax105® Duramax 焊枪易损件替换，含保护帽、内固定罩、喷嘴、电极、涡流环的等离子易损件产品。产品技术标准对照海宝原装系列产品，具有高精度、长寿命等特性。

以下产品适用于替换海宝HYPERTHERM Powermax105® Duramax手持焊枪易损件:

Replacement parts suitable for: Powermax105® Duramax hand torch consumables

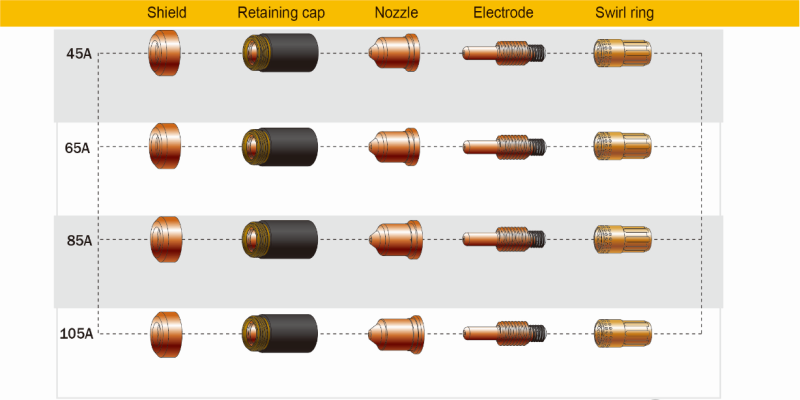

Drag-cutting consumables


电流强度 Amperage		保护帽 Shield	内固定套 Retaining cap	喷嘴 Nozzle	电极 Electrode	涡流环 Swirl ring
45A	Part No.	TRM01040101	TRM01040501	TRM01040201	TRM01040301	TRM01080701
45A	Ref.No.	220818*	220854	220941*	220842*	220994*
65A	Part No.	TRM01040101	TRM01040501	TRM01040202	TRM01040301	TRM01080701
65A	Ref.No.	220818*	220854	220819*	220842*	220994*
85A	Part No.	TRM01040101	TRM01040501	TRM01060201	TRM01040301	TRM01080701
85A	Ref.No.	220818*	220854	220816*	220842*	220994*
105A	Part No.	TRM01080101	TRM01040501	TRM01080201	TRM01040301	TRM01080701
105A	Ref.No.	220992*	220854	220990*	220842*	220994*

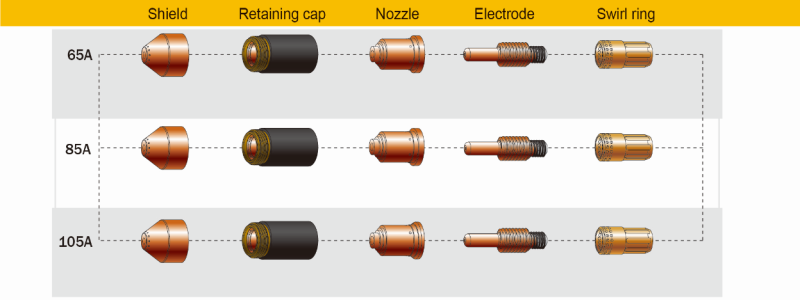

Gouging consumables


电流强度 Amperage		保护帽 Shield	内固定套 Retaining cap	喷嘴 Nozzle	电极 Electrode	涡流环 Swirl ring
65A	Part No.	TRM01040102	TRM01040501	TRM01040203	TRM01040301	TRM01080701
65A	Ref.No.	220798	220854	220797	220842*	220994*
85A	Part No.	TRM01040102	TRM01040501	TRM01040203	TRM01040301	TRM01080701
85A	Ref.No.	220798	220854	220797	220842*	220994*
105A	Part No.	TRM01040102	TRM01040501	TRM01080202	TRM01040301	TRM01080701
105A	Ref.No.	220798	220854	220991	220842*	220994*

FineCut consumables


以下产品适用于替换海宝HYPERTHERM Powermax105® Duramax 机器人焊枪易损件:

Replacement parts suitable for: Powermax105® Duramax machine torch consumables

Mechanized consumables


电流强度 Amperage		保护帽 Shield	内固定套 Retaining cap	喷嘴 Nozzle	电极 Electrode	涡流环 Swirl ring
45A	Part No.	TRM01050101	TRM01040501	TRM01040201	TRM01040301	TRM01080701
45A	Ref.No.	220817	220854	220941*	220842*	220994*
65A	Part No.	TRM01050101	TRM01040501	TRM01040202	TRM01040301	TRM01080701
65A	Ref.No.	220817	220854	220819*	220842*	220994*
85A	Part No.	TRM01050101	TRM01040501	TRM01060201	TRM01040301	TRM01080701
85A	Ref.No.	220817	220854	220816*	220842*	220994*
105A	Part No.	TRM01090101	TRM01040501	TRM01080201	TRM01040301	TRM01080701
105A	Ref.No.	220993	220854	220990*	220842*	220994*

Unshielded consumables


电流强度 Amperage		保护帽 Shield	内固定套 Retaining cap	喷嘴 Nozzle	电极 Electrode	涡流环 Swirl ring
45A	Part No.	TRM01050102	TRM01040501	TRM01040201	TRM01040301	TRM01080701
45A	Ref.No.	220955	220854	220941*	220842*	220994*
65A	Part No.	TRM01050102	TRM01040501	TRM01040202	TRM01040301	TRM01080701
65A	Ref.No.	220955	220854	220819*	220842*	220994*
85A	Part No.	TRM01050102	TRM01040501	TRM01060201	TRM01040301	TRM01080701
85A	Ref.No.	220955	220854	220816*	220842220842	220994*
105A	Part No.	TRM01050102	TRM01040501	TRM01060201	TRM01040301	TRM01080701
105A	Ref.No.	220955	220854	220816*	220842*	220994*

Gouging consumables


电流强度 Amperage		保护帽 Shield	内固定套 Retaining cap	喷嘴 Nozzle	电极 Electrode	涡流环 Swirl ring
65A	Part No.	TRM01040102	TRM01040501	TRM01040203	TRM01040301	TRM01080701
65A	Ref.No.	220798	220854	220797	220842*	220994*
85A	Part No.	TRM01040102	TRM01040501	TRM01040203	TRM01040301	TRM01080701
85A	Ref.No.	220798	220854	220797	220842*	220994*
105A	Part No.	TRM01040102	TRM01040501	TRM01080202	TRM01040301	TRM01080701
105A	Ref.No.	220798	220854	220991	220842*	220994*

FineCut consumables
