特尔玛适用于Powermax 125®
特尔玛适用于Powermax 125®
产品详细信息:
产品描述：
本系列产品适用于海宝HYPERTHERM Powermax125® Duramax焊枪易损件替换，含保护帽、内固定套、喷嘴、电极、涡流环的等离子易损件产品。产品技术标准对标海宝原装系列产品，具有高精度、长寿命等特性。
以下产品适用于替换海宝HYPERTHERM Powermax125® Duramax手持焊枪易损件:
Replacement parts suitable for: Powermax125® Duramax hand torch consumables

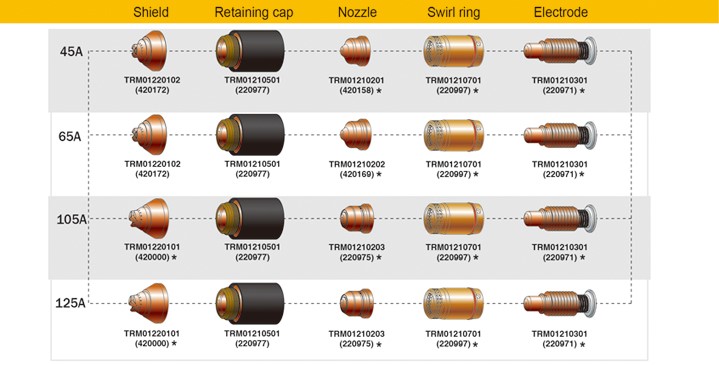

Drag-cutting
电流强度 Amperage | 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring | |
45A | Part No. | TRM01220102 | TRM01210501 | TRM01210201 | TRM01210701 | TRM01210301 |
Ref.No. | 420172 | 220977 | 420158* | 220997* | 220971* | |
65A | Part No. | TRM01220102 | TRM01210501 | TRM01210202 | TRM01210701 | TRM01210301 |
Ref.No. | 420172 | 220977 | 420169* | 220997* | 220971* | |
105A | Part No. | TRM01220101 | TRM01210501 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 420000* | 220977 | 220975* | 220997* | 220971* | |
125A | Part No. | TRM01220101 | TRM01210501 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 420000* | 220977 | 220975* | 220997* | 220971* | |

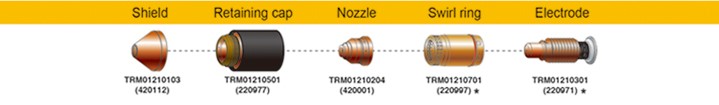

Gouging
电流强度 Amperage | 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring |
Part No. | TRM01210103 | TRM01210501 | TRM01210204 | TRM01210701 | TRM01210301 |
Ref. No. | 420112 | 220977 | 420001 | 220997* | 220971* |
FineCut
电流强度 Amperage | 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring |
Part No. | TRM01210104 | TRM01210501 | TRM01210205 | TRM01220701 | TRM01210301 |
Ref. No. | 420152 | 220977 | 420151 | 420159 | 220971* |
以下产品适用于替换海宝HYPERTHERM Powermax125® Duramax手持焊枪易损件:
Replacement parts suitable for: Powermax125® Duramax hand torch consumables
电流强度 Amperage | 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring | |
45A | Part No. | TRM01210101 | TRM01210501 | TRM01210201 | TRM01210701 | TRM01210301 |
Ref.No. | 420468 | 220977 | 420158* | 220997* | 220971* | |
65A | Part No. | TRM01210101 | TRM01210501 | TRM01210202 | TRM01210701 | TRM01210301 |
Ref.No. | 420468 | 220977 | 420169* | 220997* | 220971* | |
105A | Part No. | TRM01210102 | TRM01210501 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 220976 | 220977 | 220975* | 220997* | 220971* | |
125A | Part No. | TRM01210102 | TRM01210501 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 220976 | 220977 | 220975* | 220997* | 220971* | |
Gouging
电流强度 Amperage
| 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring |
Part No. | TRM01210103 | TRM01210501 | TRM01210204 | TRM01210701 | TRM01210301 |
Ref. No. | 420112 | 220977 | 420001 | 220997* | 220971* |
FineCut
电流强度 Amperage
| 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring |
Part No. | TRM01210103 | TRM01210501 | TRM01210204 | TRM01210701 | TRM01210301 |
Ref. No. | 420112 | 220977 | 420001 | 220997* | 220971* |
以下产品适用于替换海宝HYPERTHERM Powermax125® Duramax手持焊枪易损件:
Replacement parts suitable for: Powermax125® Duramax hand torch consumables
电流强度 Amperage | 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring | |
45A | Part No. | TRM01210101 | TRM01210502 | TRM01210201 | TRM01210701 | TRM01210301 |
Ref.No. | 420168 | 420156 ohmic | 420158* | 220997* | 220971* | |
65A | Part No. | TRM01210101 | TRM01210502 | TRM01210202 | TRM01210701 | TRM01210301 |
Ref.No. | 420168 | 420156 ohmic | 420169* | 220997* | 220971* | |
105A | Part No. | TRM01210102 | TRM01210502 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 220976 | 420156 ohmic | 220975* | 220997* | 220971* | |
125A | Part No. | TRM01210102 | TRM01210502 | TRM01210203 | TRM01210701 | TRM01210301 |
Ref.No. | 220976 | 420156 ohmic | 220975* | 220997* | 220971* | |
FineCut
电流强度 Amperage
| 保护帽 Shield | 内固定套 Retaining cap | 喷嘴 Nozzle | 电极 Electrode | 涡流环 Swirl ring |
Part No. | TRM01210104 | TRM01210502 | TRM01210205 | TRM01210701 | TRM01210301 |
Ref. No. | 420152 | 420156 ohmic | 420151 | 220997* | 220971* |
